Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel

$4,000/sets 1-2 sets
τιμή
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Βίντεο εξερχόμενη-επιθεώρηση: Παρέχεται
Έκθεση δοκιμής μηχανημάτων: Μη Διαθέσιμο
Βασικά εξαρτήματα: δρομέας, κύλινδρος λαδιού
Επεξεργασμένη πλαστική: PP, HDPE, PC, ABS, PVC, PE, ABS/PP, PE/PP, HDPE/PP
Τόπος καταγωγής: Jiangsu, Κίνα
brand name: DAWSON
Δυναμικό: 380V/50Hz
Διάσταση (l*w*h): 900*500*1200mm
Δύναμη σύσφιξης (kN): Κανένας
μάρκα plc: Οχι
Βίδα L/D Ratio: 25
Διάμετρος βίδας (mm): 55 χιλ.
απόδοση (kg/h): 60 kg/h
Αυτοματοποίηση: Αυτόματο
Αριθμός Ζώνης Θέρμανσης Βιδών: 4
βιδωτή ισχύς θέρμανσης (kw): 5 KW
Ισχύς κινητήρα εξωθητή (kw): 15 Kw
Μέγεθος πλάκας καλουπιού (πλάτος) (mm): 290 χλστ
Μέγεθος πλάκας καλουπιού (ύψος) (mm): 320 χλστ
Πίεση αέρα (MPa): 0,8 MPa
κατανάλωση αέρα (m³/min): 0,4 m³/λεπτό
θερμαντική ισχύς κεφαλής (kw): 5 KW
Ισχύς (kW): 35
βάρος (t): 0,5
βασικά σημεία πώλησης: Μεγάλη διάρκεια ζωής
Εγγύηση: 1 Έτος
Υλικό: 42CrMo
Λογισμικό σχεδιασμού: Υπέρ-ε
Εφαρμογή: Μηχανή σχηματοποίησης χτυπήματος εξώθησης
Αριθμός κεφαλιού ζεύξης: 4
απόσταση στο κέντρο της κεφαλής: σύμφωνα με το δείγμα
Πλαστικό Υλικό: HDPE/PP/PVC/ABS/LDPE
Όνομα προϊόντος: Πεθαίνω
Die head life: min 8 χρόνια
Επεξεργασία επιφάνειας κύβων: Καθρέφτης βερνίκι
Κατάσταση: Νέος
Εγγύηση βασικών εξαρτημάτων: 1 Έτος
Εφαρμοστέες Βιομηχανίες: Εργαστήρια επισκευής μηχανημάτων, εργοστάσιο παραγωγής, εργοστάσιο τροφίμων και ποτών
Τοποθεσία εκθεσιακού χώρου: Μεξικό, Κολομβία, Νότια Αφρική
Ετος: 2023
Κοίλος όγκος μερών: 500 ml
Χωρητικότητα συσσωρευτή (L): 0 L
Επισημαίνω:

Continuous Type Die Head

,

Four Head Extrusion Blow Molding Die

,

42CrMo Steel Blow Molding Die Head
Βασικές πληροφορίες
Πιστοποίηση: CE
Πληρωμής & Αποστολής Όροι
Περιγραφή προϊόντων
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 0
Products Description


DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine Die Head
Die head, is a very important part of extrusion blow molding machine. From the die head, the melted resin come out as a tubular parison. Thought the die head, we can adjust the thickness of the parison for different products. The mould pick up the parison come out from the die heads, then forming to be the finished products.
There are not only one division for the die head. If we divide by processing method, there are continuous type die head and
accumulator type die head.
If we divide based on head numbers, then there are single die head and multi die head, we have 2/3/4/6/8/10/12 heads for different product application. And we also can divide the die heads by layer number, there are die head for monolayer and die head for multi-layer.

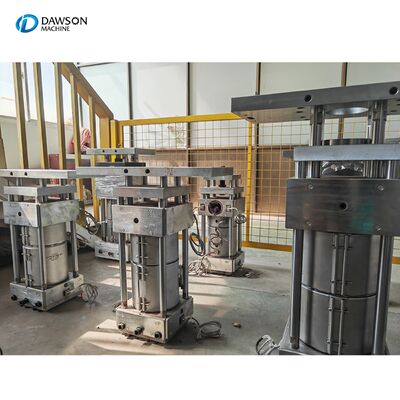

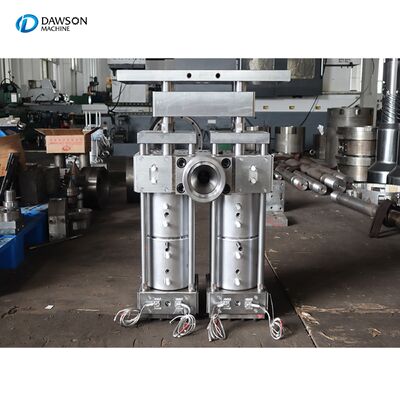

Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 1
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 2
Technical Parameters
Type of die head by processing method
continuous type die head, accumulator type
Type of die head by head numbers
1/2/3/4/6/8/10/12
Type of die head by layer numbers
1/2/3/4
Center distance
Multi heads die head, center distance can be customized
Material suitable
HDPE/LDPE/PP/PVC/EVOH/TPU/TPV/ABS/Tritan/PPSU, etc.
Material of die head
42CrMo steel
Application
Extrusion blow molding for plastic bottles, jerry cans, drums, IBC tanks, toys, table sheets, chairs, floaters, traffic barriers, etc.
Details Images

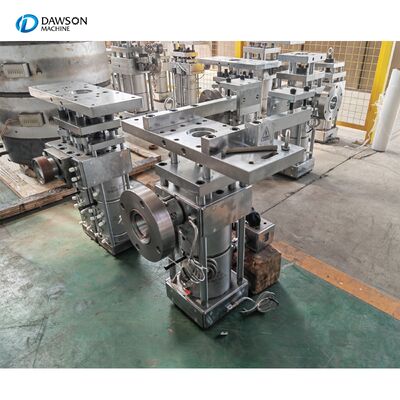

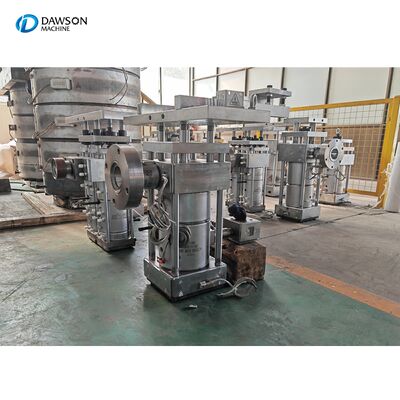

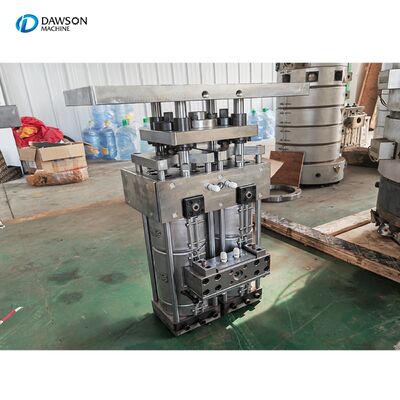

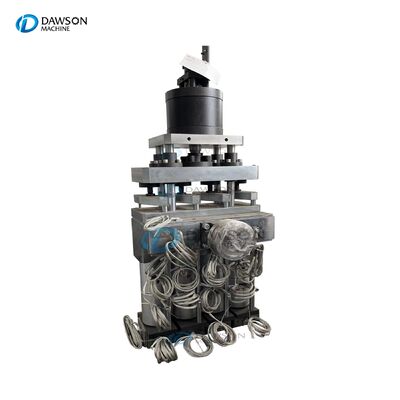

Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 3
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 4
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 5
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 6
Photos Reference
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 7
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 8
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 9
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 10
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 11
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 12
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 13
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 14
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 15
Professional Workshop
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 16
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 17

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 18
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 19
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 20
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 21
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 22
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 23
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 24
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 25
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 26
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 27
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 28
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 29
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 30
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 31
Our Service
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 32
Continuous Type Four Head Die Head for Extrusion Blow Molding Machine Made of 42CrMo Steel 33
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
